Square Core Drill Spigot (to suit 15mm to 17.52mm glass)

Duplex stainless steel 2205 square core drilled spigot available in polish, satin, matt black or matt white finish.

• Suits 15mm to 17.52mm thick glass (friction fit)

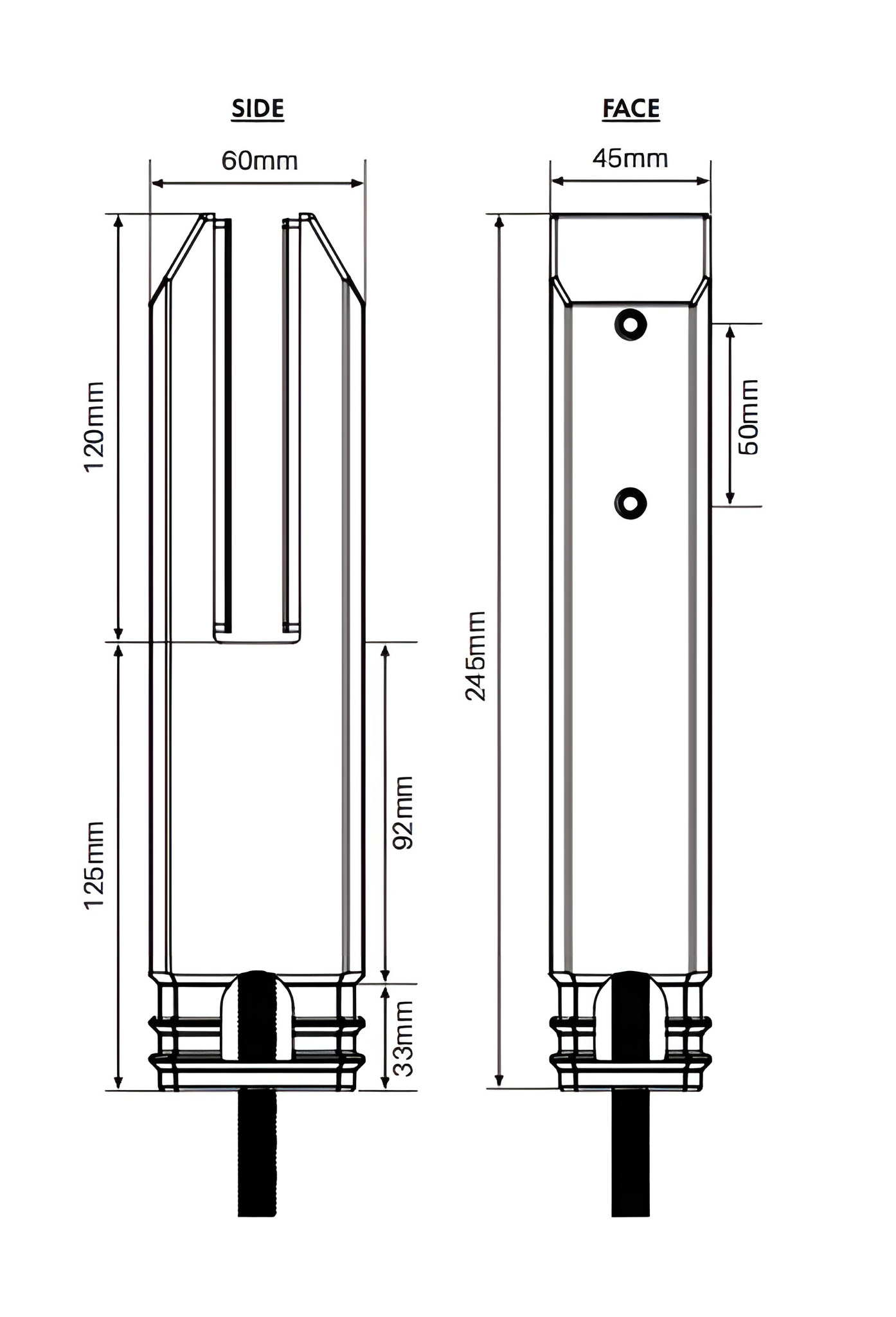

• Superior 60 x 45mm profile suitable for balustrade load and deflection requirements
• Contemporary tapered top design to ensure no ‘toe holds’
• Made from duplex stainless steel 2205 for strength and corrosion resistance
• Specially designed friction plate maximises glass clamping surface area
• M10 threaded rod at base assists height adjustment in core drilled hole and provides additional anchoring
• Dress rings sold separately

Trade Tip for Core Drilling:

The 60 x 45mm profile measures 75mm across the diagonal. As such, a 76mm diameter core drill bit is too small. Consider using an 83mm or 89mm diameter core drill bit.
