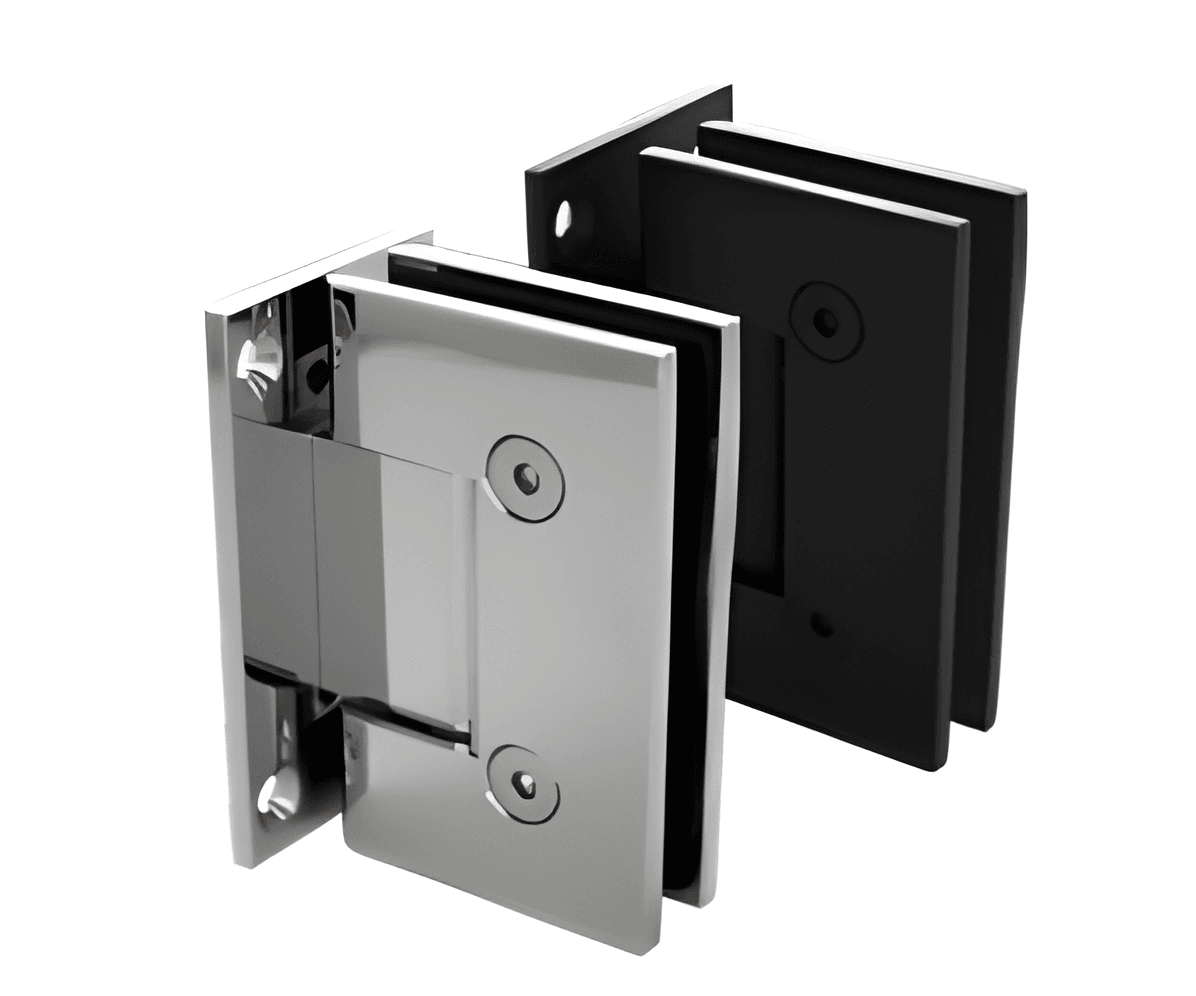

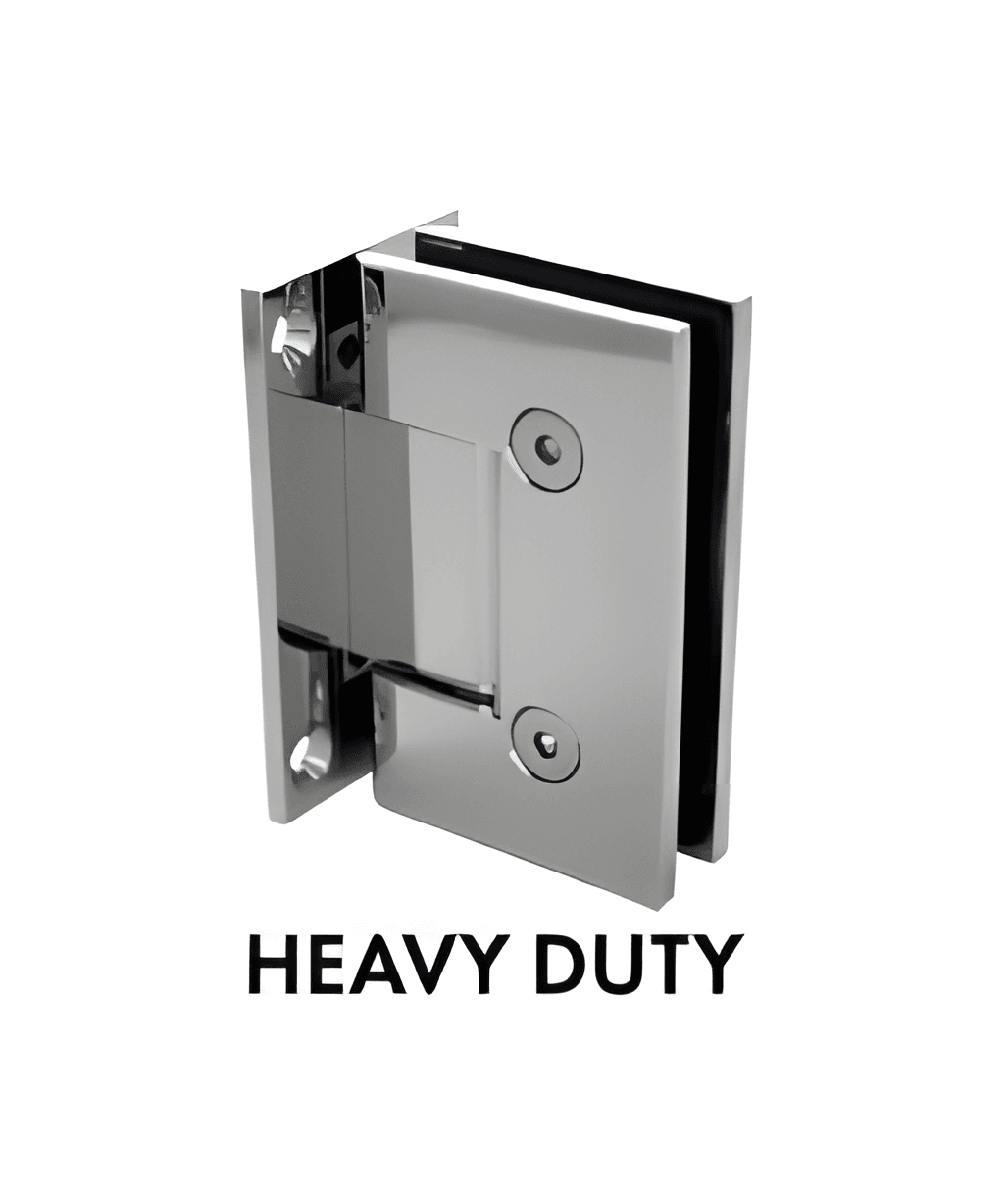

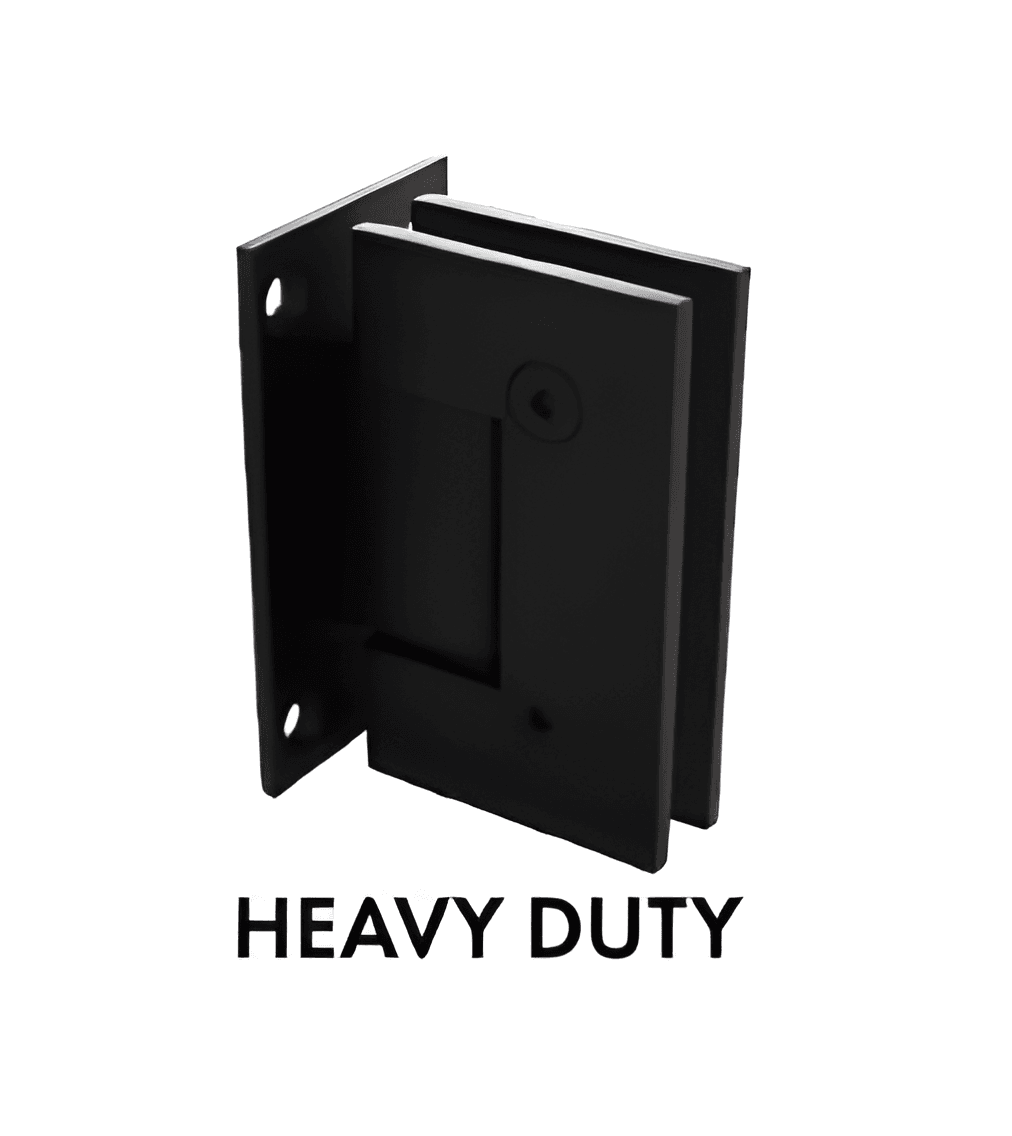

Heavy duty hinges for larger doors with square finish edges. Available in chrome plated or matt black finish.
- Heavy duty hinges for larger doors
- Square finish edges

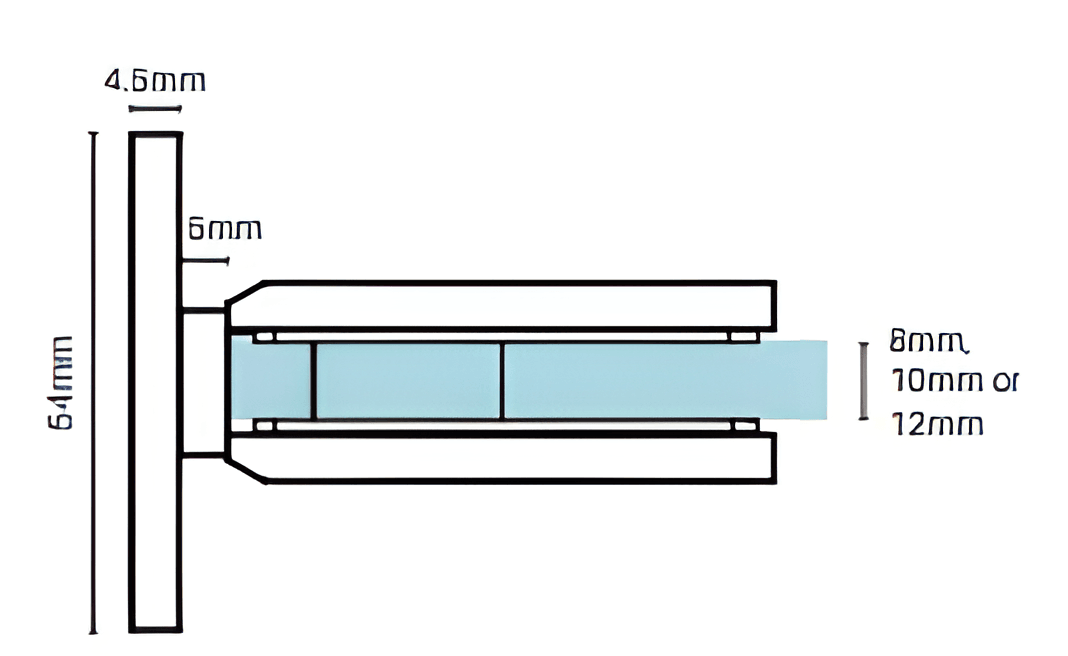

- Suitable for 8mm, 10 & 12mm glass
- “D” style glass cutouts OR ‘mickey mouse’ cutouts
- Includes screws / pins for cut-out conversion
- Dual action: opens inwards & outwards
- Manufactured in solid brass
- Clamping plates preglued with EPDM gaskets for easy fitting
- Maximum door weight: 50kg (2 hinges) / 65kg (3 hinges)
- Maximum door width: 915mm
