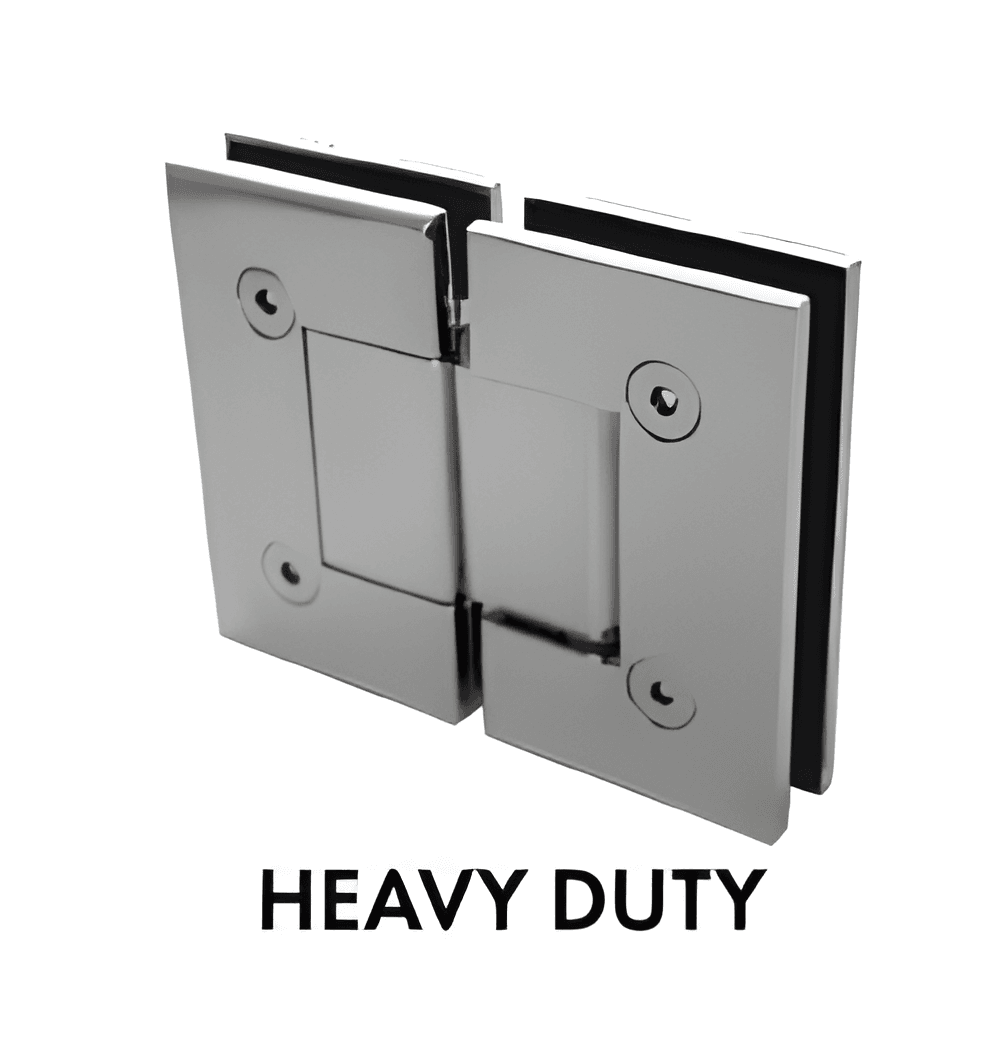

Glass to Glass Hinge (Heavy Duty Square Edge)

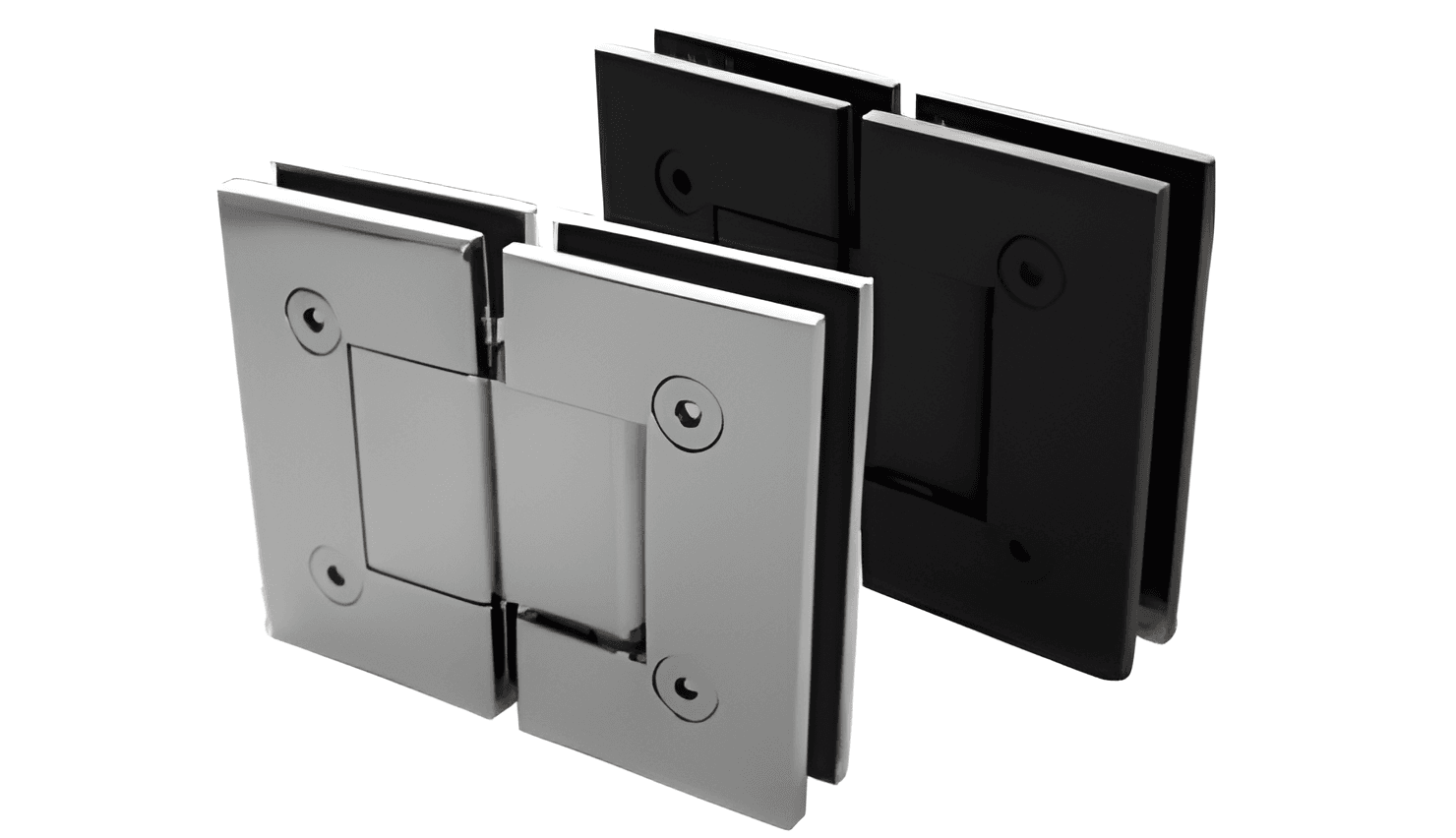

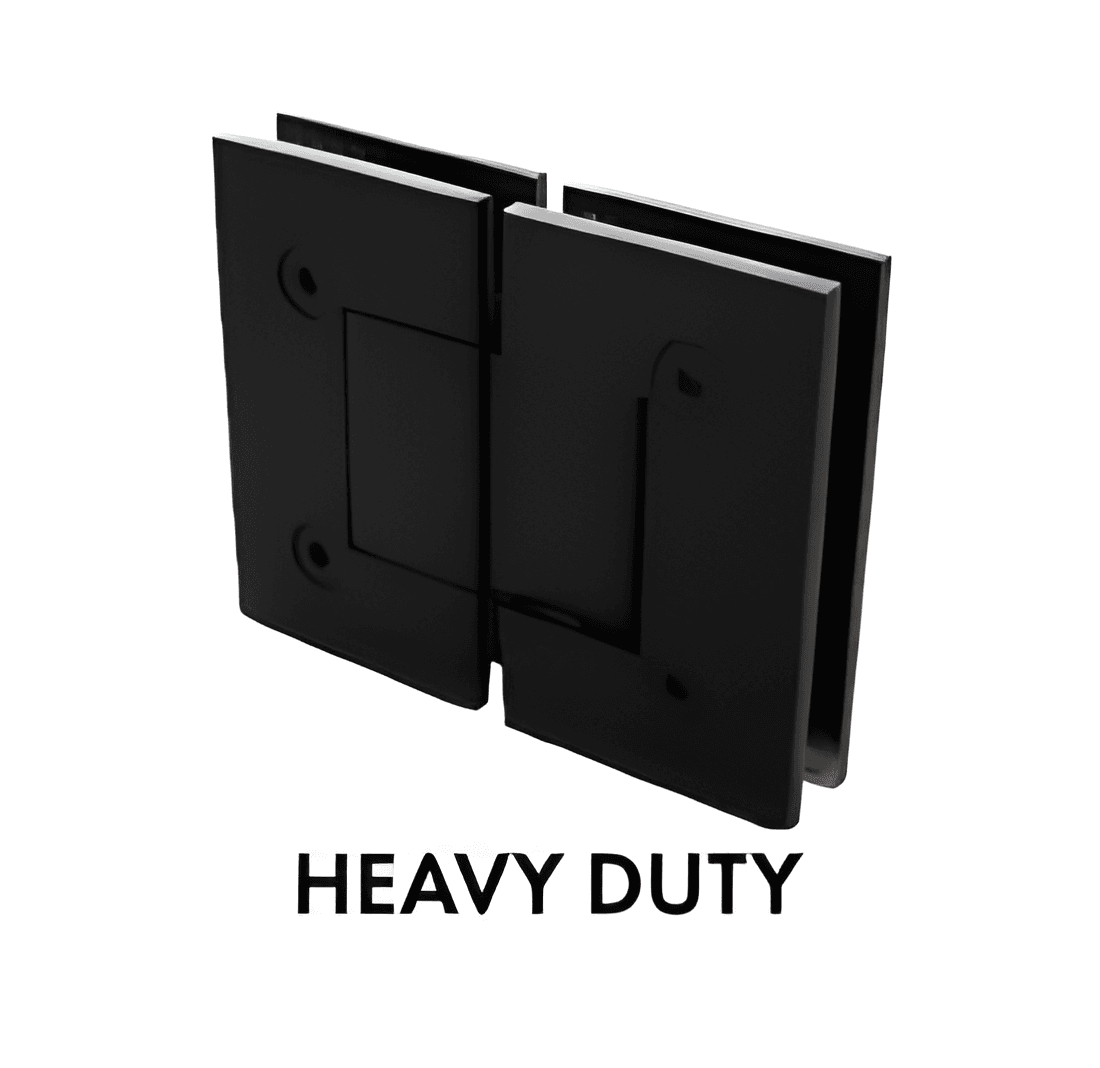

Heavy duty hinges for larger doors with square finish edges. Available in chrome plated or matt black finish.

• Heavy duty hinges for larger doors

• Square finish edges

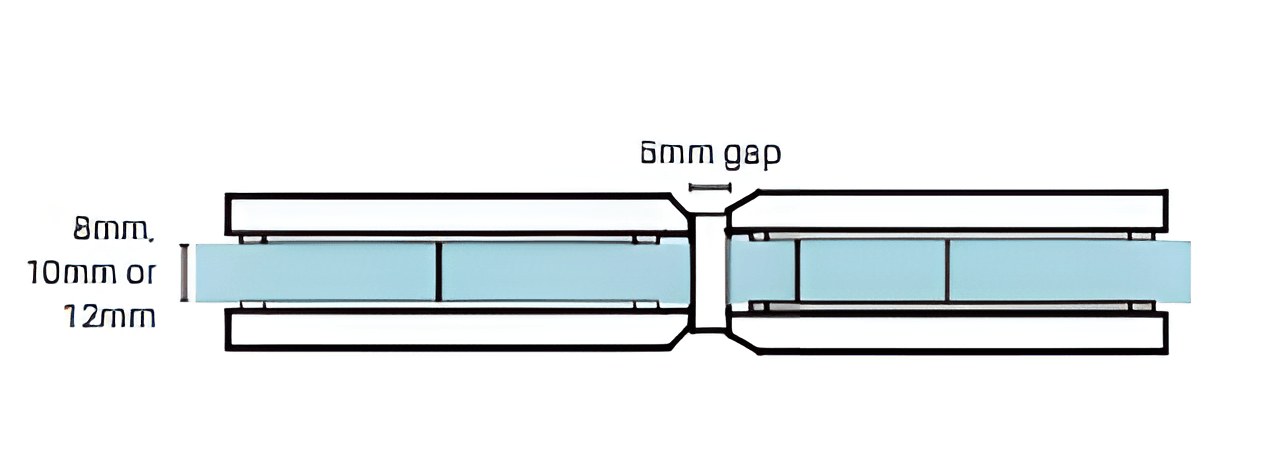

• Suitable for 8mm, 10 & 12mm glass

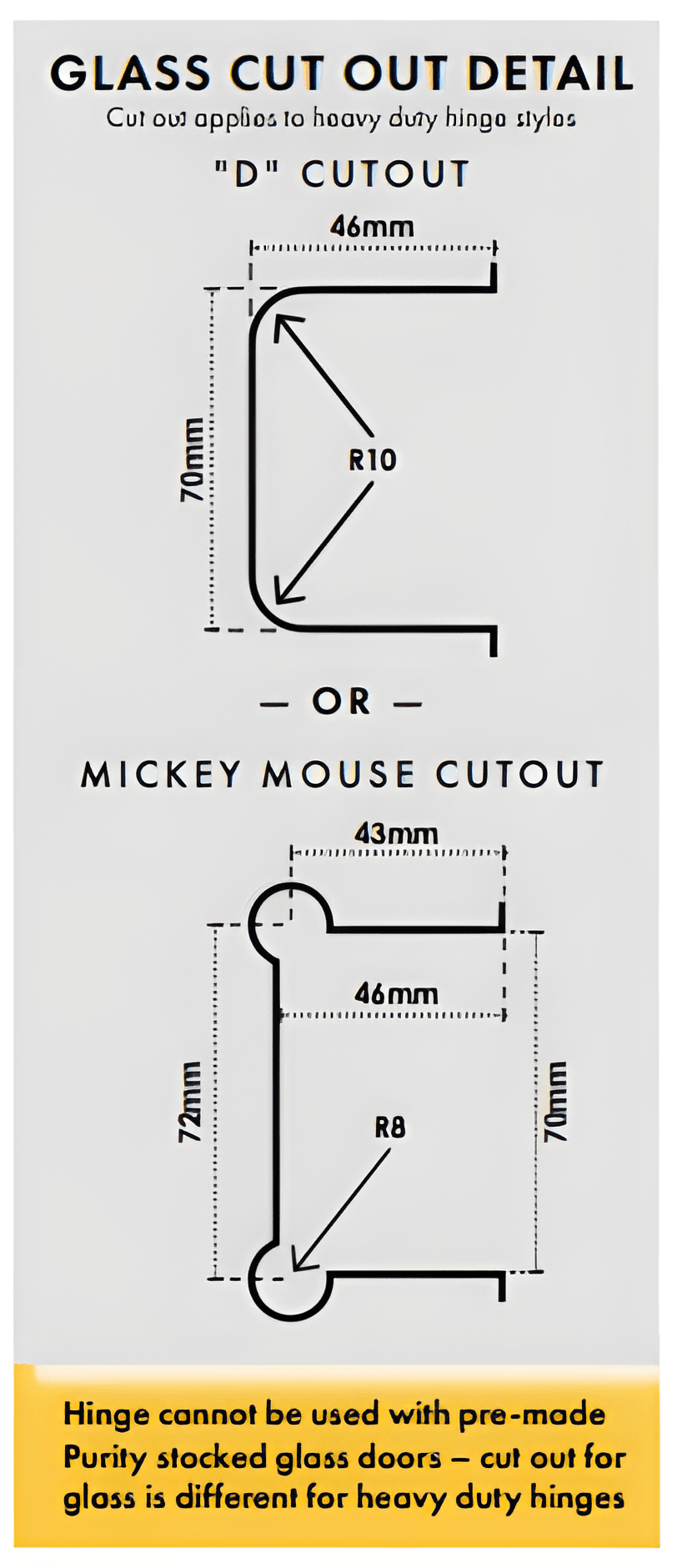

• “D” style glass cutouts OR ‘mickey mouse’ cutouts
• Includes screws / pins for cut-out conversion

• Dual action: opens inwards & outwards

• Manufactured in solid brass

• Clamping plates preglued with EPDM gaskets for easy fitting
• Maximum door weight: 50kg (2 hinges) / 65kg (3 hinges)
• Maximum door width: 915mm
